5 Ton Climbing Flattop Tower Crane QTP50 5010 Hydraulic Cylinder Lifting Hook
Why choose ACLASS EQUIPMENT
1. Good Service: Can handle any feedback timely
2. In time delivery and after sale services
3. Many kinds of models which meet customers needs.
4. Advanced technology makes sure the quality
5. Technicians are avaliable to service overseas.
Specifications of QTP5010Topless Tower Crane
| Rated Lifting Moment |
500KN.M |
| Rated Loading Capacity |
5t |
| Tip Load |
1.0t |
| Max. Lifting Height |
120m |
| Free standing height |
30m |
| Working range |
3 to 50m |
| Slewing speed |
0.6r/min |
| Trolley peed |
38.6/25.2 m/min |
| Jacking-up speed |
0.4 m/min |
| Power supply |
380V/50Hz or according to client's requirments |
| Hoisting speed |
(a=2)65.14/32.57/7.0 ; (a=4)32.14/15.60/3.5 |
| Mast section |
1.6*1.6*2.5m, 135*135*10mm square steel /Q235B |
General introduction
QTP5010 Topless Flattop Tower Crane is supplied by Jinan ACLASS Industrial Equipment Co., Ltd . Making full use of technology, combined design technology and finite element analysis technology, "tower crane computer design platform" as a tool for the design of the latest version of lifting domestic transport machinery.
This crane is Boom level jib, trolley, rotary hydraulic jacking crane. The performance parameters and the technical indicators are at or better than the national standard. Maximum operating margin is 50 m, Max lift capacity is 5tons, attached height can be 120 m, the largest jib length is 50m, lifting torque rated is 500kN • m.
Advanteges of topless tower crane
Flat head tower crane is a new-style elevating machinery, which is ideal for large buildings and equipment installation.
The topless crane has a novel design, reasonable structure, security, high reliability, strong anti-fatigue and shock resistance and other advantages.
Less height of tower head, It can reduce the height between the tower when group of tower operations. Saving space and suitable for multi-tower crane to be used in the same site.
It’s adopt non-rod and this design is convenient to change the arm, remove the arm and other operations. To avoid the complexity and risk of folding pull the road.
If interested in any type of the above products, please email us directly!

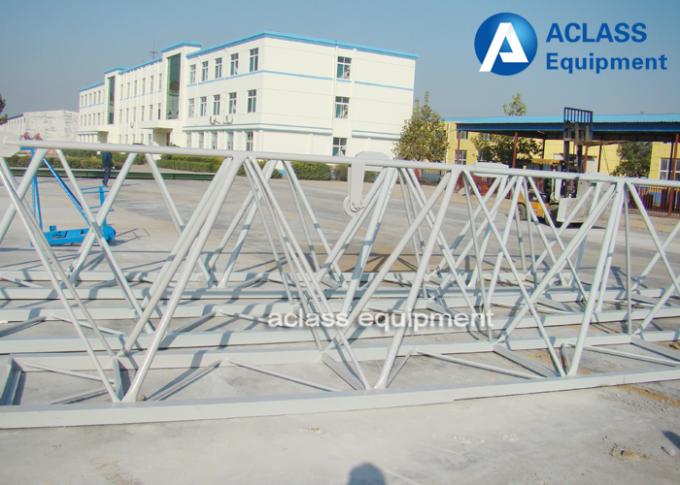

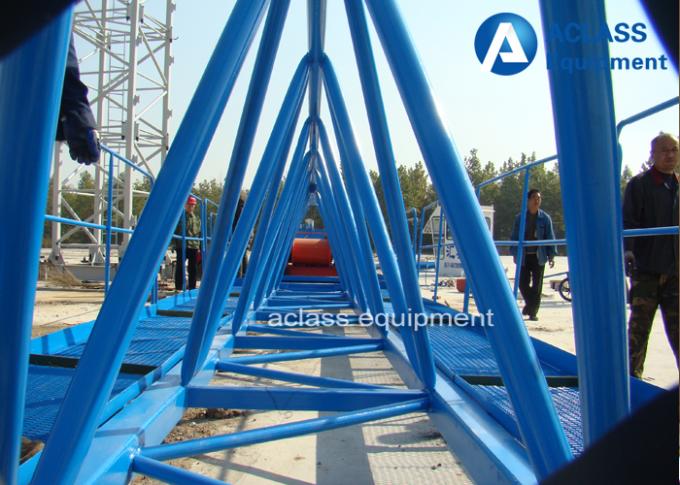

Photos for QTP5010 Topless Tower Crane
