Construction Lifter Sc200/200 Sc200 Building Elevator Lift Passenger

Construction Lifter Sc200/200 Sc200 Building Elevator Lift Passenger

Passenger Construction Lifter

SC200 Construction Lifter

Building Elevator Construction Lifter

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Rated Loading Capacity(kg):
2000 * 2 Kg
G350 Steel
Hoisting Motor:
Electra Control System:
Lift Type:
Rack And Pinion
Power Supply:
380V 50HZ Or Customized
Max Height:
400M With Reinforced Mast
Surface Treatment:
Hot Galvanized/Painting
Mast Section:
650*650*1508(mm) Weight:146Kg Q345
Cage Size:
Payment & Shipping Terms
Minimum Order Quantity
Delivery Time
180 work days
Payment Terms
T/T, L/C
Contact Us
Product Description

Engineering Construction SC200/200 SC100 Contracting

The SC200/200 designation indicates a specific type of construction hoist or personnel and material lift that is designed with dual cages or platforms, each capable of carrying its own load. Here's a detailed breakdown of what the SC200/200 represents and its features, particularly focusing on its passenger-carrying capabilities:

SC200/200 Explanation:

  • SC: As mentioned before, stands for "Construction Hoist" and denotes the equipment's purpose in the construction industry.
  • 200/200: This notation specifies that the hoist is configured with two independent cages, each with a rated loading capacity of 2000 kg (approximately 4400 pounds). This means the hoist can lift a combined weight of 4000 kg when both cages are fully loaded.

Features and Considerations for Passenger Use:

  1. Safety Standards: When used for transporting passengers, it's imperative that the SC200/200 complies with strict safety standards, such as those set by OSHA (Occupational Safety and Health Administration) in the United States, or equivalent bodies in other countries. This includes having emergency stop buttons in each cage, safety gates, and overloading prevention mechanisms.

  2. Comfort and Capacity: Each cage is designed to accommodate passengers comfortably and safely. This includes adequate space, good ventilation, and lighting. The exact number of passengers each cage can carry depends on the cage size and local regulations but is typically around 12 to 20 persons per cage, considering an average weight per person.

  3. Speed and Control: The lift operates at a controlled speed suitable for passenger comfort, usually adjustable based on the hoist's design. Smooth acceleration and deceleration are essential to avoid sudden movements that could discomfort or endanger passengers.

  4. Intercommunication: An effective communication system between the cages and ground control is vital for emergency response and operational instructions.

  5. Weather Protection: For outdoor installations, the cages are typically enclosed or partially enclosed to protect passengers from weather elements.

  6. Regular Maintenance: Frequent inspections and maintenance are crucial to ensure all safety features are functioning correctly and to prevent accidents.

  7. Installation and Stability: The hoist must be installed securely and anchored to the building structure following strict engineering guidelines to ensure stability during operation.

Product Description

Here is our model:

Item Unit SC100 SC100/100 SC200 SC200 Standard Model SC200/200 Efficient Model
Rating loading capacity KG 1000 2 x 1000 2000 2 x 2000 2 x 2000
Passengers Person 10 20 20 40 40
Lifting Speed M/Min 34.4 34.4 34.4 34.4 30
Cage Size(LxWxH) M 3.2 x 1.5 x 2.6                                 3.2 x 1.3 x 2.6
Motor Power KW 2 x 11 2 x 2 x 11 3 x 11 2 x 3 x 11 2 x 2 x 15
Rated Brake Load of Speed Governor K/N 30 40
Max Lifting Height M 150-200
Mast Weight KG 158/172
Motor Braking Torque


Rated Erection Load KG 200
Mast Section Size(LxWxH) M 0.65 x 0.65 x 1.508         0.8 x 0.8 x 1.508


Characteristics       Model RatedLoading Lifting Speed Motor Power
Double Cages Lower-speed SC200/200D 2x2000kg 0-40m/min 2x(3x11kw)       2x(3 x8.5kw)
SC100/100D 2x1000kg 0-40m/min 2x(2x13kw)
Mid-speed SC200/200Z 2x2000kg 0-60m/min 2x(2x23kw)
sC100/100Z 2x1000kg 0-60m/min 2x(2x15kw)



Lower-speed SC200D 2000kg 0-40m/min 3x11kw         3 x8.5kw
SC100D 1000kg 0-40m/min 2x13kw
Mid-speed SC200Z 2000kg 0-60m/min 2x23kw
SC100Z 1000kg 0-90m/min 3x23kw

Temporary or Permanent Installation: Construction hoists can be either temporarily or permanently installed. Temporary hoists are commonly used during the construction phase and are dismantled once the project is completed. Permanent hoists, on the other hand, are designed for long-term use in buildings where vertical transportation is required even after construction, such as in high-rise buildings or multi-story structures.

Product Display

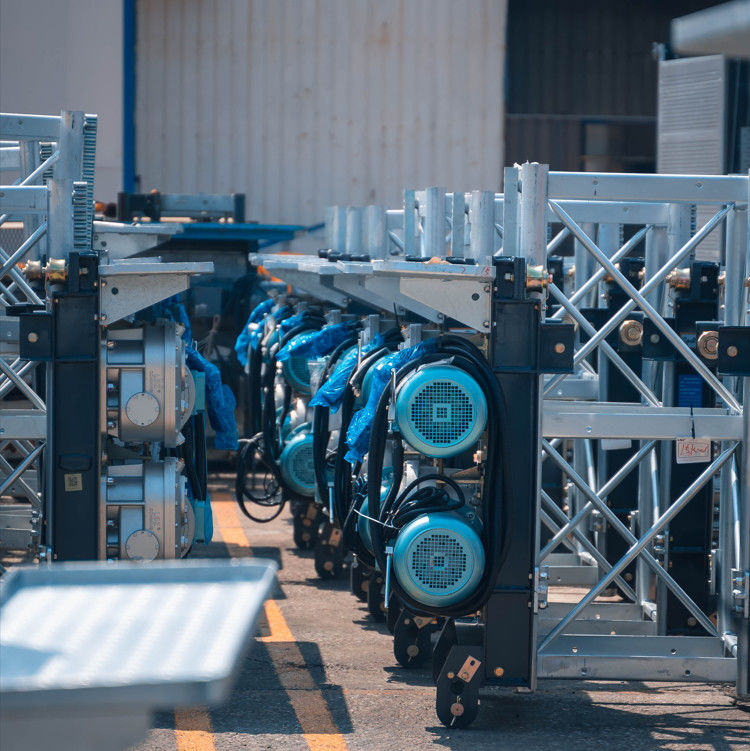

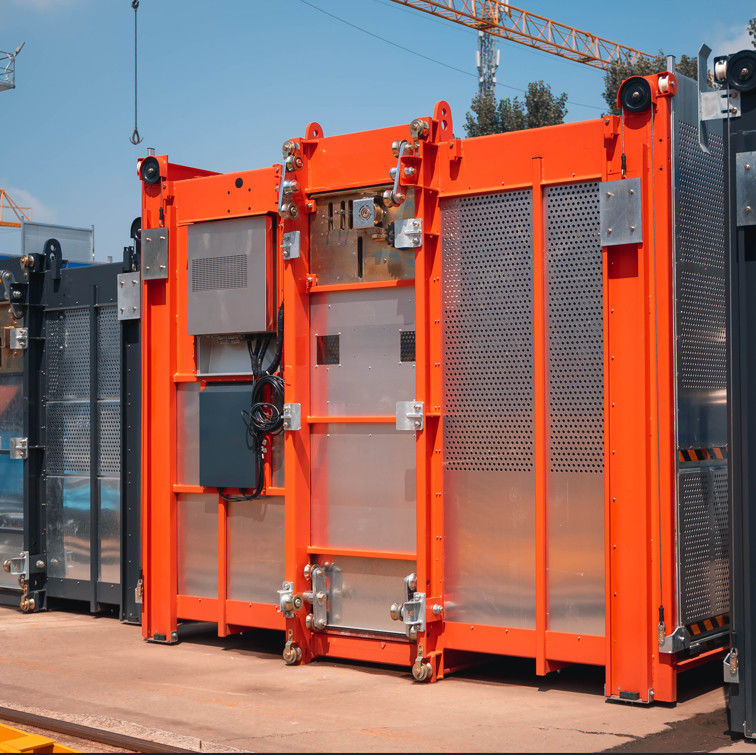

Construction Lifter Sc200/200 Sc200 Building Elevator Lift Passenger 0Construction Lifter Sc200/200 Sc200 Building Elevator Lift Passenger 1

Installation and Maintenance: Construction hoists are installed within the building or at the construction site using a hoist shaft or temporary structure. The installation process involves securing guide rails, assembling the drive machinery, and installing the carriages. Regular maintenance and inspections are essential to ensure the safe and reliable operation of the hoist. This includes routine checks of the electrical systems, mechanical components, safety devices, and compliance with relevant safety regulations.

Our Advantage


1.High quality of motor, low noise NORD Brand ,Schneider Control
2.Strong load ability, low voltage start
3.Reasonable optimization design, compact structure, convenient installation and debugging
4.Running the lift elevator before the delivery
5.Driving mechanism refueling debugging, customer without refueling
6.Selects the high quality gear reducer and anti dropping device


Packaging & Shipping

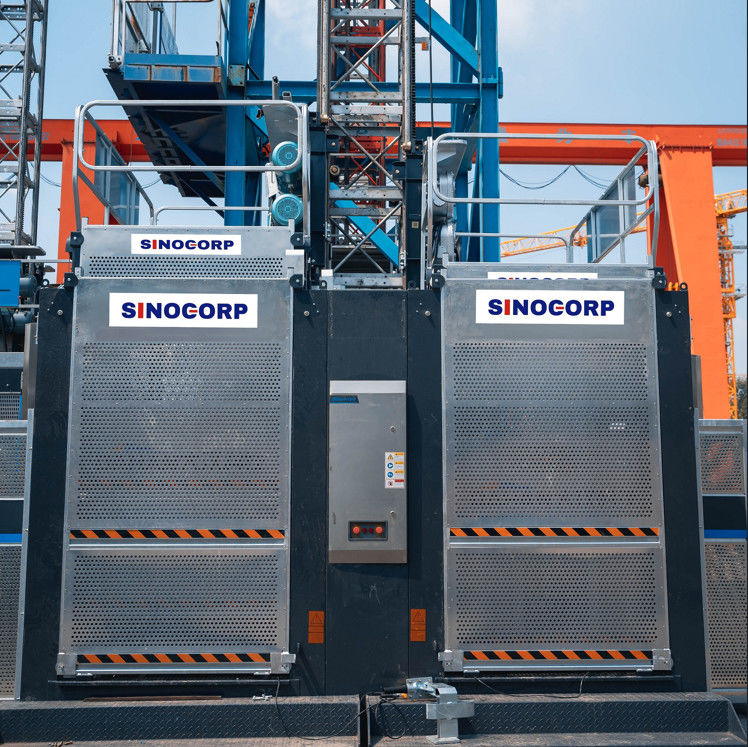

 Construction Lifter Sc200/200 Sc200 Building Elevator Lift Passenger 2

Producing & Factory Environment

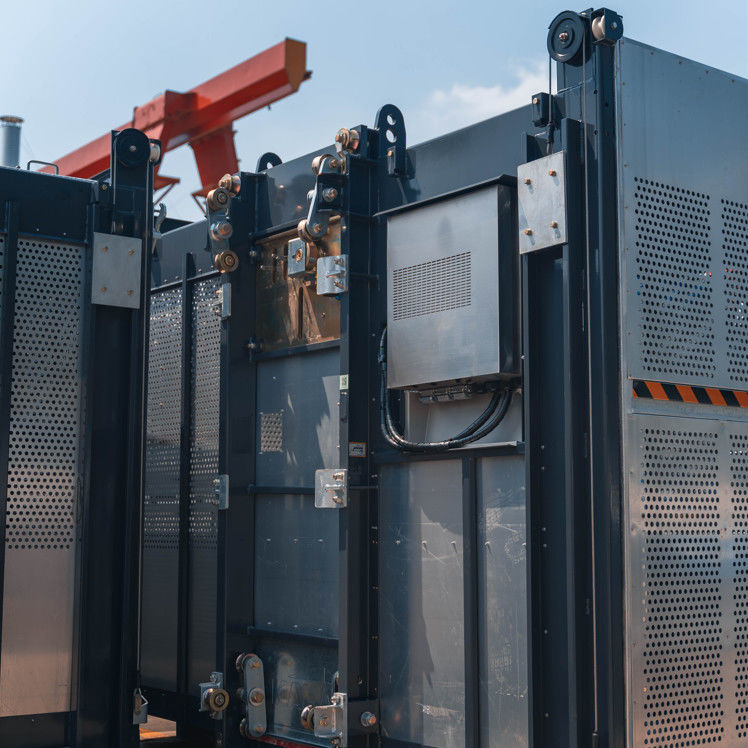

Construction Lifter Sc200/200 Sc200 Building Elevator Lift Passenger 3

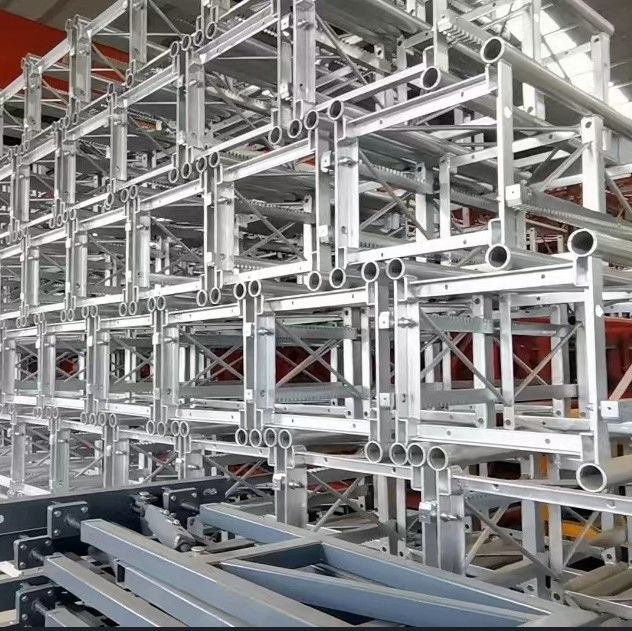

Construction Lifter Sc200/200 Sc200 Building Elevator Lift Passenger 4



Q1: Are you a trading company or a factory?
A1: We are a trading company and have our own factory. We have both the price advantage of the factory and the thoughtful service of the trading company; and the advantage of taking responsibility.
Q2: How long is your delivery time?
A2: If the goods are in stock, usually 5-10 days. Or if the goods are not in stock, then 15-20 days, depending on the quantity.
Q3: Do you provide samples ?
A3: In this field, we seldom provide samples, but it depands.
Q4:Why choose us?
A4: First,our product quality assurance and warranty for one year, steel structure warranty for lifetime and the price is cheap ;Second,we have 11 years of industry experience, so we are very professional.
Q5:Can we visiting your factory?
A5: We warmly welcome your visiting.
