Engineering Construction SC200/200 SC100 Contracting
Product Description
The Hoist Building Construction Hoist 2Ton SC200/200 you're referring to is a specialized piece of equipment designed for the vertical transportation of personnel and materials in construction sites. To clarify, the "2Ton SC200/200" specification seems to be a slight misnomer since the standard SC200/200 denotes dual lifts, each with a capacity of 2000 kg (which is approximately 2 metric tons per cage). Here's a more accurate breakdown:
Hoist Building Construction Hoist SC200/200 Overview:
-
Purpose: Primarily used in high-rise building construction projects to efficiently move workers, tools, and construction materials to various levels of the building.
-
Capacity: As mentioned, each of the two independent cages of the SC200/200 hoist can carry up to 2000 kg (or 2 metric tons). Therefore, collectively, the hoist can handle a total load of 4000 kg when both cages are utilized.
-
Design: The hoist features two separate lift cages that can operate independently, enhancing site logistics and productivity. It is built with robust steel structures and safety features to ensure secure transportation.
-

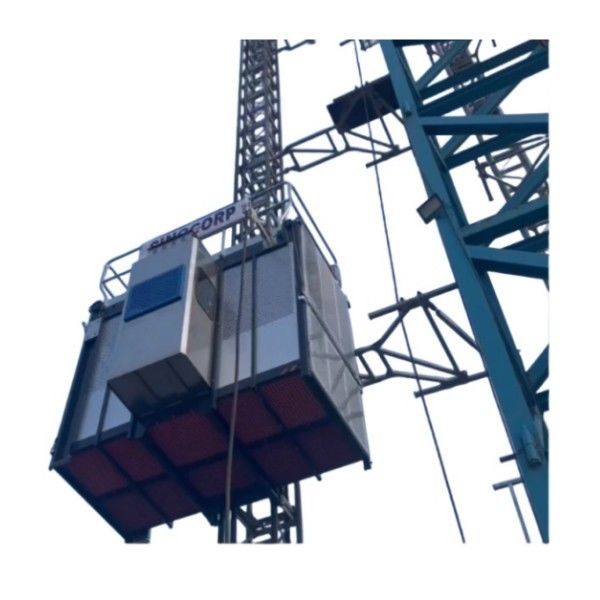

Installation: This type of hoist is typically installed on the outside of the building, with the mast secured to the building as it rises. It can be assembled and dismantled as needed, moving along with the progress of the construction.
-
Safety Measures: Equipped with safety features such as overload protection, emergency stop buttons in each cage, anti-falling devices, and interlocks to prevent operation under unsafe conditions.
-
Performance: With variable lifting speeds, these hoists can be adjusted for efficient and comfortable transport. They often have a lifting speed of around 36-96 meters per minute, depending on the model and manufacturer settings.
-
Electrical and Control System: Modern SC200/200 hoists often incorporate advanced control systems with features like variable frequency drives (VFDs) for smoother operation and energy efficiency.
Choosing and Operating:
When selecting an SC200/200 hoist for your construction project, consider factors like the total height of the building, the site layout, and the expected volume of traffic (both personnel and materials). It's crucial to source from a reputable manufacturer that provides certified equipment meeting all relevant safety standards, along with comprehensive user manuals, operator training, and after-sales support.
| Item |
Unit |
SC100 |
SC100/100 |
SC200 |
SC200 Standard Model |
SC200/200 Efficient Model |
| Rating loading capacity |
KG |
1000 |
2 x 1000 |
2000 |
2 x 2000 |
2 x 2000 |
| Passengers |
Person |
10 |
20 |
20 |
40 |
40 |
| Lifting Speed |
M/Min |
34.4 |
34.4 |
34.4 |
34.4 |
30 |
| Cage Size(LxWxH) |
M |
3.2 x 1.5 x 2.6 3.2 x 1.3 x 2.6 |
| Motor Power |
KW |
2 x 11 |
2 x 2 x 11 |
3 x 11 |
2 x 3 x 11 |
2 x 2 x 15 |
| Rated Brake Load of Speed Governor |
K/N |
30 |
40 |
| Max Lifting Height |
M |
150-200 |
| Mast Weight |
KG |
158/172 |
| Motor Braking Torque |
NM
|
120 |
| Rated Erection Load |
KG |
200 |
| Mast Section Size(LxWxH) |
M |
0.65 x 0.65 x 1.508 0.8 x 0.8 x 1.508 |
| Characteristics |
Model |
RatedLoading |
Lifting Speed |
Motor Power |
| Double Cages |
Lower-speed |
SC200/200D |
2x2000kg |
0-40m/min |
2x(3x11kw) 2x(3 x8.5kw) |
| SC100/100D |
2x1000kg |
0-40m/min |
2x(2x13kw) |
| Mid-speed |
SC200/200Z |
2x2000kg |
0-60m/min |
2x(2x23kw) |
| sC100/100Z |
2x1000kg |
0-60m/min |
2x(2x15kw) |
|
Single
Cage
|
Lower-speed |
SC200D |
2000kg |
0-40m/min |
3x11kw 3 x8.5kw |
| SC100D |
1000kg |
0-40m/min |
2x13kw |
| Mid-speed |
SC200Z |
2000kg |
0-60m/min |
2x23kw |
| SC100Z |
1000kg |
0-90m/min |
3x23kw |
Product Display
Installation and Maintenance: Construction hoists are installed within the building or at the construction site using a hoist shaft or temporary structure. The installation process involves securing guide rails, assembling the drive machinery, and installing the carriages. Regular maintenance and inspections are essential to ensure the safe and reliable operation of the hoist. This includes routine checks of the electrical systems, mechanical components, safety devices, and compliance with relevant safety regulations.
Our Advantage

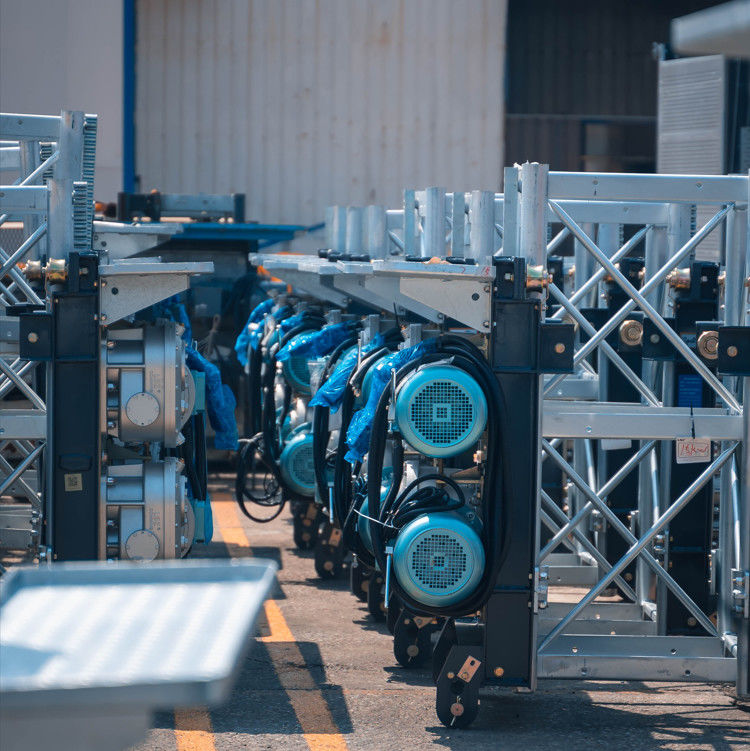

1.High quality of motor, low noise NORD Brand ,Schneider Control
2.Strong load ability, low voltage start
3.Reasonable optimization design, compact structure, convenient installation and debugging
4.Running the lift elevator before the delivery
5.Driving mechanism refueling debugging, customer without refueling
6.Selects the high quality gear reducer and anti dropping device
Packaging & Shipping
Producing & Factory Environment
FAQ
Q1: Are you a trading company or a factory?
A1: We are a trading company and have our own factory. We have both the price advantage of the factory and the thoughtful service of the trading company; and the advantage of taking responsibility.
Q2: How long is your delivery time?
A2: If the goods are in stock, usually 5-10 days. Or if the goods are not in stock, then 15-20 days, depending on the quantity.
Q3: Do you provide samples ?
A3: In this field, we seldom provide samples, but it depands.
Q4:Why choose us?
A4: First,our product quality assurance and warranty for one year, steel structure warranty for lifetime and the price is cheap ;Second,we have 11 years of industry experience, so we are very professional.
Q5:Can we visiting your factory?
A5: We warmly welcome your visiting.
